Google Goggle เทคโนโลยี่ดีๆครับ

Google Goggle คืออะไร?

Google Goggle เป็นเทคโนโลยีการค้นหาข้อมูลโดยใช้รูปภาพเป็นอินพุตในการค้นหา ประโยชน์คือ เพียงแค่เราถ่ายภาพ เช่น สถานที่ สิ่งของ หรือคน Google Goggle ก็จะนำภาพที่เราถ่ายนั้นไปเปรียบเทียบกับฐานข้อมูลว่าสิ่งเหล่านั้นมันคืออะไร ถ้าเป็นสิ่งของก็จะบอกได้เลยว่ารายละเอียดเป็นอย่างไรและหาซื้อได้ที่ไหน
ตัวอย่างเช่น เราไปเที่ยวสถานที่แห่งนึงเราอยากรู้ว่าที่นี่ที่ไหน เราก็สามารถถ่ายรูปด้วยกล้อง iPhone (ในตัวโปรแกรม Google Goggle)
ถ่ายภาพของถายที่เหล่านั้นเพื่อ Goggle จะได้นำไปเปรียบเทียบกับฐานข้อมูลที่มีอยู่

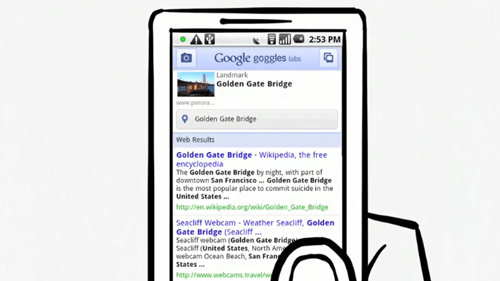

จากนั้น Goggle  ก็จะแสดงข้อมูลว่าสถานที่ตรงนี้คือที่ไหน
เห็นไหมครับว่ามันง่ายขนาดไหนนอกจากเรื่องสถานที่แล้วยังมีการค้นหารูปของคน เช่นเราเจอรูปดาราคนนี้ในนิตยสารที่เราไม่รู้ว่าเป็นใคร เราก็ Goggle แล้วก็จะได้ข้อมูล, สามารถใช้ Goggle บอกสถานที่เป็นรีลไทม์ได้ด้วยโดยการใช้ร่วมกับ GPS เพียงเราเปิดกล้องแล้วส่งไปที่สถานที่นั้นระบบก็จะบอกทันทีว่าที่ไหน


Goggle จะมาพร้อมกับแอป Google Mobile App นะครับ มันไม่ได้มาตัวเดี่ยวใ้ห้ทุกท่านเข้าไป AppStore ค้นหาแล้วติดตั้งด้วยคำว่า Google Mobile App นะครับ


ที่มา iphonemod.net
ไปดูต่อได้ที่ กดเลย

วันพุธที่ 29 กันยายน พ.ศ. 2553

มีที่ไหน มาซื้อโทรศัพท์รับ Krispy Kreme ฟรีๆ ไม่ต้องต่อคิว



คนไทยชอบลองของใหม่ครับ
นื่องจากมี ร้านโดนัท Krispy Kreme มาเปิดใหม่
Edwards เห็นคนต่อแถวยาว แล้วชอบใจ ไปเข้าแถวกะเค้าบ้าง เหมามาเยอะเลย


ทางร้าน Wisdom Mobile จึงขอเสนอโปรโมชั่นพิเศษในวันที่ 30 กันยายน เมื่อมาซื้อมือถือ ลงโปรแกรม ติดฟีล์ม icarbon skin มานั่งคุย นั่งเล่น...  กินโดนัทไปพลางๆ ระหว่างรอได้เลยครับ


พิเศษของมีจำนวนจำกัด มาก่อนมีสิทธ์ ชิม ก่อนนะครับ




แล้วพบกันครับ


the image

วิธีตรวจเช็ค IPHONE 4 ก่อนที่จะซื้อครับ

ใกล้เข้ามาทุกทีกับ การจำหน่าย iPhone 4 อย่างเป็นทางการในไทย (ข่าวเก่า)ก่อนหน้านี้ AppTube ก็เอาผลทดสอบ speestest ของ TRUE 3G มาไว้ประกอบการพิจารณาสำหรับเลือกค่ายที่จะใช้กับไอโฟน 4 แล้ว คราวนี้ก็เลยขอแนะนำ วิธีการเช็คเครื่องไอโฟน 4 ที่หลายคนจะได้แกะกล่องมาใช้เร็ว ๆ นี้ ขอบอกไว้ก่อนว่า รายการเช็คทั้งหมดนี้เช็คอุปกรณ์ในเครื่องไอโฟน ครบทุกฟังก์ชันเลย ข้อมูลก็เลยเยอะหน่อย แต่ก็เพื่อความสบายใจ ส่วนข้อบกพร่อง หรือปัญหาของ iPhone 4 ที่เจอกัน ก็ไม่ได้มีจำนวนเยอะมาก และส่วนใหญ่เป็นปัญหาช่วยแรกของสายการผลิต (คงจะรีบปั้มเครื่องไปหน่อย) แต่ก็ลองเช็คตามรายการข้างนี้กันไว้ก่อนดีกว่า เผื่อโชค "ดี" เฮงเจอเครื่องบกพร่อง แล้วก็ถ้าเจอปัญหาแต่เนิ่น จะได้ไปเคลมเครื่องกัน
ส่วนใครอยากได้เช็คลิสต์แบบสั้น ๆ ย่อ ก็ลองไปดู checklist iPhone 3GS ก็น่าจะมาประยุกต์ใช้ได้เหมือนกัน มีเพียงบางรายการที่ iPhone 4 เพิ่มเข้ามาจาก iPhone 3GS เช่น Gyroscope และ LED Flash ขอให้มีความสุขกับการใช้ไอโฟน 4 และอย่าลืมใช้ให้คุ้มนะครับ (เพราะมันแพงพอ ๆ กับคอมพิวเตอร์เครื่องหนึงเลย)
สุดท้าย อย่าลืมนะครับ iPhone 4 ใช้ MicroSIM ซึ่งแปลว่าต้องเปลี่ยนซิมใหม่นั่นเอง และ iOS 4.1 ยังไม่ได้สามารถเจลเบรคได้ ณ ตอนนี้ ดังนั้นแม้เครื่องมีปัญหา และต้องการจะเจลเบรคเครื่อง ก็รออีกสักหน่อยก่อนการ อัพเดต iOS 4.1
สิ่งที่ควรตรวจสอบก่อนที่คุณจะ Sync iTunes ครั้งแรก

ตัว iPhone 4 ที่มีปัญหางานประกอบ
Outer Casing  : ตัวเครื่องภายนอก ลองดูตัวรอบตัวเครื่องว่ามีรอยหรือไม่ มีรอยแตก รอยแยก หรือส่วนไหนหลวมหรือเปล่า iPhone 4 ทำด้วยวัสดุที่แข็งแรงเพราะทำจากแก้วและโลหะ งานประกอบของไอโฟนมีคุณภาพสูง ดังนั้นต้องไม่มีส่วนไหนยวบยาบ ส่วนด้านหน้าและด้านหลังทำการแก้ว จะต้องเสมอเป็นระบายเดียวกันทั้ง 2 ด้าน และรอบตัวเครื่องจะเป็น สแตนเลสสตีล ซึ่งใช้เป็นเสาอากาศ

ลองส่องไฟดูจะเห็นรอยแตก ได้ง่ายกว่า
แม้โอกาสที่จะมี รอยแยก (gap) จะมีน้อย แต่ถ้าโชคร้ายจริงๆ ก็เกิดขึ้นได้ ซึ่งมองได้ยากซะด้วย วิธีการเช็คก็คือ ให้หัน iPhone 4 ด้านข้าง โดยมีใช้โคมไฟส่องจากด้านหลัง ถ้ามองไม่เห็น แสงใด ๆ รอดออกมา (ตามรูป) ก็แปลว่าตัวเครื่องภายนอกของ iPhone 4 คุณไม่มีปัญหาใด ๆ
ปุ่ม Home/ Sleep : ปุ่ม 2 ปุ่มนี้ เวลากดแล้วต้องไม่รู้สึกว่า หลวม หรือฝืดเกินไปเวลากด แต่ถ้าปุ่มมันขยับได้เล็กน้อย อันนี้เป็นเรื่องปรกติ แต่ถ้าปุ่ม Sleep บุ๋มลึกเกินกว่าปรกติ หรือปุ่ม Home ต้องใช้แรงกดมากกว่าปรกติ ถึงจะทำงาน อันนี้อาจจะเป็นปัญหาที่การผลิต
Vibrate switch/motor: มอเตอร์สั่น เลื่อนปุ่มปิดเสียงเรียกเข้า เพื่อให้เครื่องใช้มอเตอร์ทำให้เครื่องสั่น เช็คปุ่มว่ากดได้ปรกติดี และทุกครั้งที่เลื่อนปุ่มนี้มาที่ เก็บเสียง (silent) เครื่องจะต้องสั่นทุกครั้ง ซึ่งแสดงว่า ไอโฟน ได้เข้าโหมดเก็บเสียงแล้ว และมอเตอร์ทำหน้าที่สั่นเครื่องทำงานเรียบร้อยดี
สิ่งที่ควรตรวจสอบตอน Sync เครื่อง iPhone 4 ครั้งแรกกับ iTunes
Dock Connector : ช่องเสียบสายเข้ากับคอมพิวเตอร์ ถ้าไอโฟน ไม่สามารถ Sync กับ Windows หรือ Mac ได้, หรือ detect ไม่เจอตัวเครื่องไอโฟน, ไอโฟนไม่ชาร์ทไฟ แปลว่าเครื่องผิดปรกติ
Flash Memory : หน่วยความจำภายในเครื่อง โดยทั่วไปแล้ว ปัญหาที่เกิดกับ Flash memory ไม่ค่อยจะมี แต่ถ้าถึงคราวซวยจริงๆ มันก็อาจจะเกิดขึ้นได้ ถ้าคุณลอง Sync ไอโฟนกับ iTunes หลายสิบรอบแล้ว ทั้งลองแก้ปัญหาทั่วไปที่เกิดขึ้นกับ iTunes แล้วยังไม่หาย สาเหตุก็อาจจะมาจาก เมมโมรี่ในเครื่อง วิธีทดสอบง่ายที่สุด ก็คือลอง Sync ไฟล์ หนัง หรือเพลง เข้าไปให้เต็มความจุของไอโฟน 16 GB หรือ 32 GB แต่มันอาจจะใช้เวลานานเป็นชั่วโมง เอาไว้ว่างจริงๆ ค่อยลองทดสอบดูแล้วกัน
สิ่งที่ควรตรวจสอบหลังจาก Sync กับ iTunes ผ่านแล้ว
Volume buttons:  ปุ่มปรับเสียง ก็ลองเช็คด้วยกด กด +/- ดูว่าทำงานถูกต้องไหม เพราะเคยมีรายงานในระยะแรก ปุ่ม + / - ใส่สลับตำแหน่งกัน


iPhone 4 บางเครื่องมีปัญหา white balance (ภาพออกสีเหลือง) ในภาวะแสงน้อย
YouTube
Camera : กล้อง ลองถ่ายรูปจากทั้งกล้องด้านหน้า และด้านหลัง ลองแตะเพื่อปรับโฟกัสภาพ (tap to focus) โดยลองแตะบริเวณที่สว่างที่สุด หรือที่มืดที่สุด จากภาพในกล้อง ซึ่งปรกติแล้วกล้องจะต้องปรับความสว่าง และโฟกัสภาพไปที่บริเวณที่แตะ รูปที่ถ่ายสีต้องไม่เพี้ยน
ลองถ่ายรูปกับกระดาษขาว ถ้าขึ้นภาพแนวนี้มา ก็แปลว่ากล้องมีปัญหา


LED Flash มีปัญหา ติด ๆ ดับ ๆ
แล้วอย่าลืมทดสอบเปิด Flash กล้อง โดยการแตะที่หน้าจอบริเวณด้านบนซ้าย ตอนเปิด camera app จนขึ้นว่า "on" แล้วลองถ่ายรูปดูว่า Flash ทำงานไหม เสร็จแล้วก็ลองถ่ายวีดีโอต่อ ตอนเล่นคลิปวีดีโอ อย่าลืมเช็คว่ามีเสียงในคลิปไหม ภาพวีดีโอลื่นไหล ไม่มีกระตุก หรือสีเพี้ยน

Accelerometer : วิธีลองง่ายสุด ก็คือลองเอียง iPhone 4 จากแนวตั้งไปแนวนอน หน้าจอจะต้องปรับภาพตามที่เราเอียงตัวเครื่อง และลองเข้า Message สำหรับส่ง SMS รอให้ขึ้น keyboard แล้วลองเขย่าเครื่องดู ถ้า Accelerometer ทำงาน จะต้องขึ้น "Undo typing or cancel" (อย่าลืมปิด Portrait orientation lock ก่อนทดสอบ)
ภาครับสัญญาณ (Antennae) :
3G : อันนี้คงต้องลองกับซิมที่มีให้ทดลอง 3G อย่างเช่น TrueMove 3G หรือ TOT และมีเพียงบางพื้นที่ที่มีให้ทดลองบริการ 3G วิธีการทดสอบที่ง่ายที่สุด ก็คือลองเปิดเว็บด้วย Safari หรือจะลองใช้ speedtest mobile ในการทดสอบความเร็วเน็ตก็ได้ และลองจับเครื่องแน่น ๆ โดยใช้อุ้มมือซ้าย แล้วดูว่าสัญญาณลดลงไปอย่างรวดเร็วไหม เช่นจาก สี่ขีด เหลือ ขีดเดียวหรือเปล่า ถ้าใช่ก็เจอปัญหา Death Grip ซะแล้ว ก็วิธีแก้ปัญหาก็คือ หากรอบมาใส่ไอโฟนครับ
EDGE/GPRS : ให้ไปที่ Settings > General > Network แล้วกด "off" ที่ Enable 3G รอสักพัก ไอโฟนจะเปลี่ยนไปใช้เครือข่าย 2G แล้วก็ลองเหมือน 3G ดูครับ ว่าทำงานไหม เน็ตวิ่งหรือเปล่า ยังไงถ้าทำแล้วเน็ตไม่วิ่งลอง กด เปิด/ปิด air plane mode สักครั้งสองครั้งดู ก่อน
GPS : ให้เปิด Maps app แล้วกดที่ ลูกศร ที่ด้านล่างซ้าย รอสักพัก จะเห็นลูกกลมสีฟ้าขึ้น พร้อมบอกตำแหน่งของเรา ซึ่งก็ควรจะแสดงตำแหน่งใกล้เคียงกับ ตำแหน่งที่เราอยู่จริง ด้วยการออกแบบใหม่ของ iPhone 4 ทำให้ GPS สามารถรับสัญญาณได้ดีขึ้น แม้จะอยู่ในตัวอาคารอีกด้วย
Bluetooth : ลองต่อ iPhone 4 ของคุณกับ หูฟัง Bluetooth ของคุณ หรือลองต่อกับชุด BlueTooth บนรถว่าสามารถทำงานได้ปรกติไหม เชื่อมต่อได้ตลอดหรือเปล่า แต่ถ้ามีปัญหา ก็ลอง upgrade เป็น iOS 4.1 ขึ้นไป
Wi-Fi : ลองเปิด WiFi ให้เป็น "On" ดูว่าเจอสัญญาณไร้สาย WiFi บ้างไหม (อยู่ในพื้นที่ที่มี WiFi HotSpot) ลอง connectดูว่า สามารถใช้งานได้หรือเปล่า แต่ส่วนใหญ่ไม่มีปัญหากับตรงจุดนี้ น่าจะเชื่อมต่อและใช้งานได้ดีขึ้นด้วย เพราะสนับสนุน 802.11n แล้ว


iPhone 4 ที่มีปัญหา touchscreen ไม่ทำงาน
Touchscreen : วิธีการทดลองก็ลองเปิด app อะไรก็ได้ที่ต้องใช้ keyboard แล้วลองพิมพ์ประโยค "The quick brown fox jumps over the lazy dog" โดยทำซ้ำ โดยเอียงเครื่องเพื่อเปลี่ยนเป็น landscape mode (คียบอร์ดแนวนอน) โดยทำอย่างนี้ให้ครบทั้ง 4 ด้าน ซึ่งก็จะเป็นการใช้พื้นที่ครอบคลุมเกือบทั้งหน้าจอ และการลองmultitouch ก็คือเปิด photo app เพื่อดูรูปที่ถ่ายไว้ แล้วลองเลื่อนนิ้วไปทางซ้าย หรือไปทางขวา ดูว่าภาพเลื่อนตามไหม และใช้สองนิ้ว ลากขยาย เพื่อซูมรูปดู
คราบสีเหลือง ที่พบในช่วงแรก ในการจำหน่าย iPhone ที่ USA เนื่องจากรีบเร่งในการผลิต
LCD : เช็ค dead pixel โดยการเข้าเว็บจาก Safari ไปที่ http://iphonedpt.awardspace.com/ หรือลองใช้โปรแกรมพวก Flash light ที่จะแสดงสีต่างๆ  กันไปทั้งหน้าจอ หรือจะเข้า YouTube app แล้วค้นหาคำว่า "dead pixel" ดูก็ได้  ส่วนใครจะเช็ค back light ก็ไปที่ Setting ->  Brightness แล้วลองเลื่อนตัวสไลด์จากซ้ายสุดไปขวาสุดดูว่า ความสว่าง back light เปลี่ยนแปลงไหม
Ambient Light Sensor : เซ็นเซอร์แสงสว่างในห้อง วิธีเช็คก็คือ ไปอยู่ในห้องมืด แล้วไปปรับที่ Setting -> Brightness ซึ่งค่าที่มากับเครื่อง Auto-Brightness จะถูก off อยู่ หน้าจอจะสว่าง แต่ถ้ากด on ความสว่างของหน้าจอจะหรี่ลง
Magnetometer : เข็มทิศ ให้ไปที่ Compass app แล้วลองหมุนรอบตัวดู ว่าเข็มทิศทำงานหรือไม่ ถ้า iPhone ขึ้นให้ วาดเครื่องเป็นรูปเลข 8 ตลอดเวลา แม้จะหมุนเครื่องเป็นเลข 8 แล้วไม่หาย ก็แปลว่าเข็มทิศในเครื่องมีปัญหา
Gyroscope : อันนี้เป็นลูกเล่นใหม่ ต้องลองโหลด free app Gyroscope มาลองใช้งานดู ถ้าค่า Pitch, roll, yaw ไม่เปลี่ยนแปลงเลย เมื่อขยับตัวเครื่องขึ้นลง ก็แปลว่าเซ็นเซอร์มีปัญหาแล้ว
สิ่งที่ต้องเช็คขณะใช้โทรศัพท์
ไมโครโฟน : ให้ลองทั้ง 2 แบบคือแบบใช้งานปรกติ กับเสียงออกลำโพง (speaker phone) ลองโทรออกดู คู่สนทนาต้องใช้เสียงเราชัดเจนดี โดยทั่วไปก็ไม่ค่อยมีปัญหาอยู่แล้ว แต่ก็ยังมีรายงานว่า มีปัญหาโทรไปแล้วอีกฝั่งไม่ได้ยินเสียง ซึ่งปัญหาอาจจะเกิดจาก Noise Cancellation ในเครื่องรวน

ลำโพง : ควรลองทั้ง ลำโฟงตรงตำแหน่งหูฟัง และลำโพงที่บริเวณด้านล่างเครื่อง ไม่ควรมีเสียงเพี้ยนเกิดขึ้น ปัญหาที่เคยเกิดขึ้นก็คือ มีเสียงเหมือน beatbox แทรกมาตอนโทรออก ลองดูจากคลิปด้านบน

iPhone 4 ที่เคยมีปัญหา proximity sensor หลังอัพเดต iOS 4.1 ปัญหาก็หมดไป โดยจะมีจุดสังเกตคือ sensor จะสว่างเป็นสีแดงขึ้นมา สังเกตได้ง่ายในที่มืด
Proximity Sensor :  หน้าจอต้องดับเองทุกครั้ง ที่เราแนบหูตอนโทรออก วิธีทดสอบคือ ให้ลองโทรเข้าหรือโทรออกก็ได้ แล้วเอามือป้องตรงส่วนบนใกล้กับบริเวณหูฟัง ดูว่าหน้าจอดับเองไหม ถ้ามีปัญหาหน้าจอ touchscreen ไม่ดับ ก็ควรลอง upgrade เป็น iOS 4.1 ดูก่อน ซึ่งได้มีการแก้ปัญหานี้ไปแล้ว ถ้า upgrade แล้วยังเป็นอยู่ แปลว่า proximity sensor มีปัญหา
Battery : แบตเตอร์รี่ ให้ลองทดสอบดูว่า แบตหมดเร็วกว่าปรกติทั่วไปหรือเปล่า ซึ่งจะลองทดสอบด้วยการเปิดหนังสักเรื่อง ไปเรื่อย ๆ จนแบตหมด ถ้าตามมาตราฐานแล้ว ทาง Apple บอกว่าแบตจะหมดภายใน 10 ชั่วโมง แต่ในความเป็นจริง จะหมดเร็วกว่านั้นก็จะอยู่ที่ประมาณ 7 ชั่วโมง โดยเปิดวีดีโอเล่นไว้ตลอด สำหรับเครื่องใหม่แกะกล่อง ชาร์ตไฟเต็ม 100 % แล้ว โดยปรับความสว่างหน้าจอตามค่าโรงงาน และไม่ได้เปิดเน็ต หรือทำอย่างอื่น ถ้าแบตหมดเร็วกว่า 7 ชั่วโมง แบตเตอร์รี่อาจจะมีปัญหาก็ได้
รวมๆ แล้วเป็นการทดสอบที่ใครๆ ที่อยากเช็คเครื่องโดยละเอียด ก็สามารถทำได้ ใช้เวลาทั้งหมดประมาณ 15-20 นาที ไม่นับเวลา Sync ข้อมูลกับ iTunes ในการใช้ครั้งแรก
ใครไม่ว่างเข้าเว็บ blog แต่ไม่อยากตกข่าว หรือข้อมูลน่าสนใจ สามารถสมัคร RSS feed เพื่อตามข่าว หรือสมัครเข้าสมาชิกจดหมายข่าว ส่งตรงถึงกล่องอีเมลทุกวัน

เครดิต http://apptube.exteen.com

วันอังคารที่ 28 กันยายน พ.ศ. 2553

ทดสอบความเร็ว iphone 2G / 3G / 3GS / 4



ไปเจอมาครับ เลยเอามาแบ่งปันว่า iPhone 2G / 3G / 3GS / 4 เร็วกว่ากันแค่ไหน

วันจันทร์ที่ 27 กันยายน พ.ศ. 2553

ข้างใน iPhone 4 มันเป็นอย่างงี้นี่เอง




first image
thumb image 1
thumb image 2

Add NoteStep 1 — iPhone 4 Teardown


  • The world's most wanted device is now in the hands of the world's most foremost tinkerers!

  • The all-new iPhone 4 features upgrades from the 3GS including:

    • A redesigned glass & stainless steel body that shaves 3.5 mm off the width and is 3 mm thinner than the 3GS.

    • Choice of black or white coloring

    • Retina display featuring twice the pixel density of the 3GS

    • iOS 4 for multi-tasking

    • 5 MP, 720p capturing rear-facing and VGA front-facing cameras

first image

Add NoteStep 2


  • The iPhone 4's design is a dramatic departure from the aluminum and plastic drenched days that have plagued the iPhone in the past.

  • The rugged stainless steel bezels around the iPhone 4's perimeter double as both structural supports and antennas to boost reception.

    • Only time will tell if they absorb shock as poorly as the iPhone 3GS.

  • Shameless plug:

    • Never been to iFixit before? We are arepair manual for every thing. Our goal is to show everyone how to fix all their own stuff!

    • We also sell useful things, like Mac partsiPad parts, and tools.

first image

Add NoteStep 3


  • An iPhone first: Interestingly enough, the storage capacity is not etched on the outer case of the iPhone 4.

  • We'd expect our 32 GB iPhone 4 to fulfill its promise and give us, well, 32 GB. Unfortunately it has an actual capacity of 29.06 GB.

    • Given the fact that 301 MB of "other" data is being stored in memory, this leaves the user with 28.77 GB of free space.

  • In terms of OS, the iPhone 4 comes preinstalled with the newly released iOS 4, build 8A293.

  • The iPhone 4 is Model A1332. Interestingly, that's a lower number than the A1337 iPad 3G.

first image
thumb image 1
thumb image 2
thumb image 3

Add NoteStep 4


  • Like the iPhone 3G and 3GS, there are two silverPhillips #00 screws at the bottom of the phone.

  • In a departure from the design of the 3G and 3GS, removing the screws releases the rear case, not the front glass.

  • This design makes switching out the rear panel trivial, but unfortunately means that replacing the iPhone 4 front panel will likely be rather challenging.

first image
thumb image 1
thumb image 2
thumb image 3

Add NoteStep 5


  • Removing rear panel gives us a pretty good look at the iPhone 4's innards.

  • Holy battery! The inside of this thing is dominated by its juice-provider.

  • It's pretty apparent that real estate was very limited inside the iPhone 4's 115.2 x 58.6 x 9.3 mm footprint.

  • You can also see pressure contact on the inner face of the rear panel for what appears to be an antenna.

first image
thumb image 1
thumb image 2
thumb image 3

Add NoteStep 6


  • Luckily, the battery can be easily removed once the back panel assembly is out of the way.

  • The 3.7V 1420 mAh Li-Polymer battery allows for up to 7 hours of talk time on 3G or up to 14 hours on 2G.

  • The battery connector is different than the one in the 3G and 3GS. Fortunately, the battery is not soldered to the logic board. This will make battery replacement on the iPhone 4 fairly easy to accomplish.

  • The plastic pull tab for the battery says "Authorized Service Provider Only."

first image
thumb image 1
thumb image 2
thumb image 3

Add NoteStep 7


  • No EMI shield will stand between us and the innards of this iPhone 4!

  • The EMI shield comes off after five screws are removed to reveal lots of important connectors.

first image
thumb image 1
thumb image 2
thumb image 3

Add NoteStep 8


  • The logic board is heavily embedded under wires and EMI shields.

  • While we're not too busy, let's talk RAM. Unlike the iPhone 3GS and iPad, which are both equipped with 256 MB, the iPhone 4 has a whopping 512 MB!

  • The increase in RAM allows for a larger amount of cached data allowing for a smoother and faster user experience.

    first image
    thumb image 1
    thumb image 2
    thumb image 3

    Add NoteStep 9


    • Hiding in the corner is the iPhone 4's vibrator motor, which...well...vibrates.

    first image

    Add NoteStep 10


    • Removing one of the many connectors on the logic board.

    • In our brief usage, we did notice that the phone is considerably warmer on the right side. This makes sense, as the logic board is located entirely along the right side of the phone.

    first image
    thumb image 1
    thumb image 2

    Add NoteStep 11


    • Behold a beauty in the iPhone 4: a rear-facing 5 MP camera with 720p video at 30 FPS, tap to focus feature, and LED flash.

    • This is a huge upgrade from the 3.2 MP camera found in the iPhone 3GS.

    first image
    thumb image 1
    thumb image 2
    thumb image 3

    Add NoteStep 12


    • Removing the lower antenna/speaker enclosure from the bottom of the phone.

    • The improved audio chamber aids in clarifying sounds leaving the iPhone, including calls via speakerphone as well as music played through the speaker inside this housing.

    • Apple hasn't made taking the iPhone 4 apart very hard so far: no 5-point Torx bits or fragile clips to be seen.

    first image
    thumb image 1
    thumb image 2
    thumb image 3

    Add NoteStep 13


    • Removing the logic board.

    • The unusual shape and small size of the logic board shows just how costly real estate is inside this powerhouse of a phone.

    first image

    Add NoteStep 14


    • Apple has integrated the UMTS, GSM, GPS, Wi-Fi, and Bluetooth antennas into the stainless steel inner frame.

    • The dual purpose stainless steel inner frame/antenna assembly addresses possibly the two biggest flaws concerning previous iterations of the iPhone: continuous dropped calls and lack of reception.

    • Apple has gone a step further and tuned the phone to utilize whichever network band is less congested or has the least interference for the best signal quality, regardless of the actual signal strength. Early reports suggest this feature, while buggy in its early stages, will greatly improve the phone's reliability on AT&T's fragile network.

    first image

    Add NoteStep 15


    • With the EMI shields off, we can get a look at what makes this beast roar.

    • Lurking deep within the phone, the A4 processor, manufactured by Samsung, is the centralized unit that provides the iPhone 4 with the much needed computing power.

    • Replacing the Samsung S5PC100 ARM A8 600 MHz CPU used in the 3GS, the new iPhone uses the ARM Cortex A8 core, much like its bigger sibling, the iPad. The iPad's A4 is clocked at 1 Ghz.

    • The new Samsung Wave S8500 smartphone uses the same Cortex A8 core!

    • Just to the left of the A4 package, the AGD1 is the new 3 axis gyroscope that we believe is designed and manufactured by ST Micro for Apple. The package marks on this device do not appear to be the currently available commercial part, L3G4200D. The commercial version of this gyroscope is yet to be released — Apple got first dibs on it.

    first image

    Add NoteStep 16


    • On the top of logic board:

      • Skyworks SKY77542 Tx–Rx iPAC™ FEM for Dual-Band GSM/GPRS: 880–915 MHz and 1710–1785 MHz bands.

      • Skyworks SKY77541 GSM/GRPS Front End Module

      • STMicro STM33DH 3-axis accelerometer

      • TriQuint TQM676091

      • 338S0626




first image

Add NoteStep 17


  • On the back:

    • Samsung K9PFG08 flash memory

    • Cirrus Logic 338S0589 audio codec (Apple branded). This is the same part as in the iPad.

    • AKM8975 - newest magnetic sensor that promises to improve the performance over the prior generation.

    • Texas Instruments 343S0499 Touch Screen Controller

    • 36MY1EE NOR and mobile DDR

first image
thumb image 1
thumb image 2

Add NoteStep 18


  • Wi-Fi, Bluetooth, and GPS are all provided by Broadcom and located beneath EMI shields on the front side of the board.

  • Broadcom BCM4329FKUBG 802.11n with Bluetooth 2.1 + EDR and FM receiver.

  • Broadcom BCM4750IUB8 single-chip GPS receiver.

first image
thumb image 1
thumb image 2

Add NoteStep 19


  • Up next we find the second microphone, which is used to cut out ambient noise and improve sound quality when talking on the phone.

  • You can also see the ambient light sensor and the proximity sensor which are mounted right above the earpiece.

first image

Add NoteStep 20


  • The front-facing VGA camera.

  • While the 5 megapixel camera on the rear of the iPhone 4 is ideal for video recording, the smaller camera on the front optimizes use of Apple'sFaceTime for mobile-to-mobile video calls.

first image
thumb image 1
thumb image 2
thumb image 3

Add NoteStep 21


  • The front panel comes off without too much additional trouble.

  • The stainless steel body left behind is quite a marvel of gadget engineering.

first image
thumb image 1
thumb image 2
thumb image 3

Add NoteStep 22


  • The front glass panel of the iPhone is reported to be constructed of Corning Gorilla Glass, a chemically strengthened alkali-aluminosilicate thin sheet glass that is reported to be 20 times stiffer and 30 times harder than plastic.

  • Gorilla Glass holds many advantages as the iPhone 4's front panel, including its high resistance to wear and increased strength from an ion-exchange chemical strengthening process.

  • LED Backlight for the LCD.

  • Unfortunately, the LCD panel is very securely glued to the glass and digitizer, with the entire assembly measuring 3.05mm thick. It appears that if you break the glass, you'll have to replace the iPhone 4's glass, digitizer, and LCD as a single assembly.

first image
thumb image 1
thumb image 2

Add NoteStep 23


  • Surprisingly, the electronic home button switch is attached directly to the home button itself.

first image
thumb image 1
thumb image 2

Add NoteStep 24


  • The 30-pin dock connector is where we would usually expect it to be: at the bottom of the iPhone.

  • The primary microphone is also found at the bottom of the phone.

first image
thumb image 1
thumb image 2

Add NoteStep 25


  • Apple is following in the footsteps of the Nexus One by using dual microphones to help improve audio quality and suppress background noise.

  • Interestingly, the two microphones are positioned at the two far ends of the phone. The microphone at the top of the iPhone is most likely utilized for capturing background noise to be analyzed by internal circuitry and used to cancel any noise put into the main microphone other than the user's voice.

  • You can also see the ambient light sensor which adjusts the iPhone's brightness as lighting conditions change.

  • The proximity sensor sits right next to the ambient light sensor. This will turn the display off when you bring the phone up to your ear thus preventing any touch interaction while it's pressed up against ear.

first image

Add NoteStep 26


  • As always, we provide each device with a fitting final layout shot that it so greatly deserves.

  • We would like to thank you for joining us tonight during this monumental endeavor.

  • We also created a set of iPhone 4 repair guides for all major components inside the device. They will definitely help you fix your iPhone 4 should something happen to it!
ที่มา..www.ifixit.com
